Introduction

GitLab is a web-based version control system that provides free open and private repositories, issue-following capabilities, and wikis. It is a complete DevSecOps platform that enables professionals to perform all the tasks in a project—from project planning and source code management to monitoring and security. Additionally, it allows teams to collaborate and build better software.

Deployment

The Autopay Gitlab Server has been deployed in a Self-Hosted model based on AWS resources.

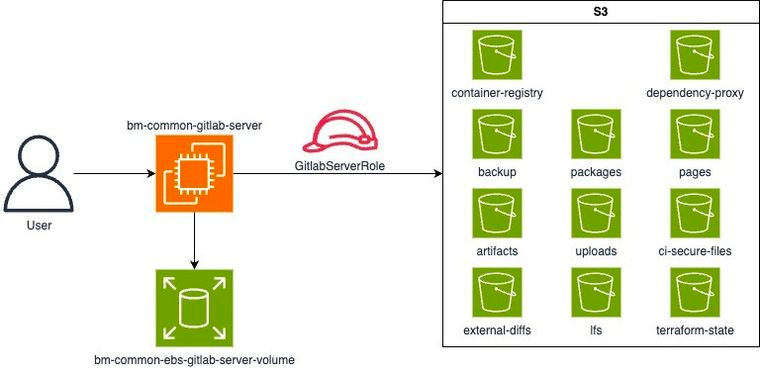

Infrastructure

Autopay

The Gitlab Server, along with its other components (S3, roles with assigned appropriate permissions, etc.), is fully operational within the AWS infrastructure. The current informations are listed in the table below:

Attribute

Value

Account

AWS Common

Server

EC2

OS

Ubuntu

Configuration

Ansible

Private IP

10.136.0.230

Public IP

---

DNS

git.blue.pl


The Gitlab Server instance has been configured using an Ansible Playbook located in a Git repository.

Networking

For the proper functioning of the instances, the following ports have been opened:

Port

Protocol

Description

80

TCP

HTTP

443

TCP

HTTPS

22

TCP

SSH

5005

TCP

Container Registry

-1

TCP

Ping

8060

TCP

Metrics: Nginx

9121

TCP

Metrics: Redis

9187

TCP

Metrics: PostgreSQL

9100

TCP

Metrics: Node

9229

TCP

Metrics: Workhorse

8082

TCP

Metrics: Sidekiq

9168

TCP

Metrics: Exporter

9236

TCP

Metrics: Gitaly

5001

TCP

Metrics: Registry

Maintenance

Install

  1. Install and configure the necessary dependencies:

    sudo apt-get update sudo apt-get install -y curl openssh-server ca-certificates tzdata perl

    Next, install Postfix (or Sendmail) to send notification emails. If you want to use another solution to send emails please skip this step and configure an external SMTP server after GitLab has been installed

    sudo apt-get install -y postfix

    During Postfix installation a configuration screen may appear. Select 'Internet Site' and press enter. Use your server's external DNS for 'mail name' and press enter. If additional screens appear, continue to press enter to accept the defaults.

  2. Add the GitLab package repository and install the package:

    curl https://packages.gitlab.com/install/repositories/gitlab/gitlab-ee/script.deb.sh | sudo bash

    Next, install the GitLab package. Make sure you have correctly set up your DNS, and change https://gitlab.example.com to the URL at which you want to access your GitLab instance. Installation will automatically configure and start GitLab at that URL.

    For https:// URLs, GitLab will automatically request a certificate with Let's Encrypt, which requires inbound HTTP access and a valid hostname. You can also use your own certificate or just use http:// (without the s ).

    If you would like to specify a custom password for the initial administrator user ( root ), check the documentation. If a password is not specified, a random password will be automatically generated.

    sudo EXTERNAL_URL="https://gitlab.example.com" apt-get install gitlab-ee

  3. Browse to the hostname and login.

    Unless you provided a custom password during installation, a password will be randomly generated and stored for 24 hours in /etc/gitlab/initial_root_password. Use this password with username root to login.

  4. Set up your communication preferences.

    Visit our email subscription preference center to let us know when to communicate with you. We have an explicit email opt-in policy so you have complete control over what and how often we send you emails.

    Twice a month, we send out the GitLab news you need to know, including new features, integrations, docs, and behind the scenes stories from our dev teams. For critical security updates related to bugs and system performance, sign up for our dedicated security newsletter.

Update

  1. Log into Gitlab Server instance with SSH.

  2. Update APT repos:

    apt update

  3. List all upgradable package and check if gitlab-ee exists on list:

    apt list --upgradable

  4. Run update:

    apt upgrade gitlab-ee

  5. Wait to update ends with output Upgrade complete!

  6. (Optional) Verify if all Gitlab apps works:

    gitlab-ctl status

Monitoring

Troubleshooting
