HLD012 - Privileged Access Management

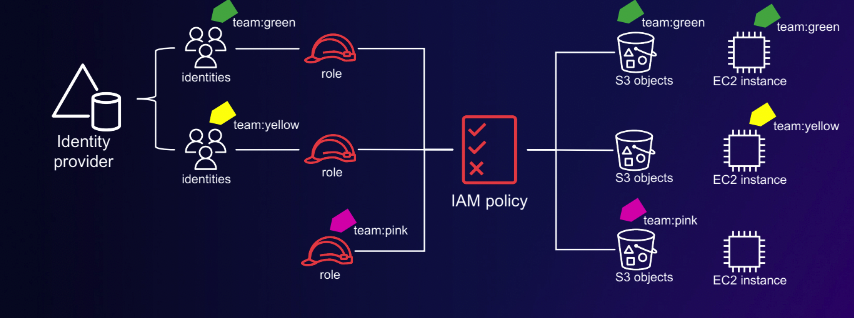

Key insights about ABAC

• Identities and resources are given metadata attributes

• Authorization based on principal and resource attributes

• Attributes are part of the session

• ABAC complements RBAC rather than replaces it

• ABAC relies on mutable tags – key to success is tag governance

• Adopt ABAC on a resource-by-resource basis

• Consider human versus application scenarios – applications deployed

• using pipelines can have built-in guardrails

When should you consider ABAC?

• Single account that requires fine-grained controls

  • This might improve IAM Pathing of roles/resources (services must support it, tho)

• Associate access with employee attributes

• Fine-grained control within a specific service or set of resources

• Similar IAM policies but with different, well-defined, resources scopes

RBAC

The most common approach to authorization model when working with IAM is to set up role-based access control (RBAC). In IAM, you implement it by creating different policies for different job functions, and then you attach the policies to identities such as (IAM) users/groups of users/roles. As a best practice, you grant the minimum permissions necessary for the job function. This is known as granting the least privilege. The main disadvantage of this approach is that when new resources are added, you must update policies to allow access to those resources.

Overview

AWS

The whole concept is based on user attributes synched from Active Directory:

• ExtAttribute12 - in-project role name

• DepartmentNumber - alphanumeric project acronym

• FullOrgName - name of tribe/organization unit

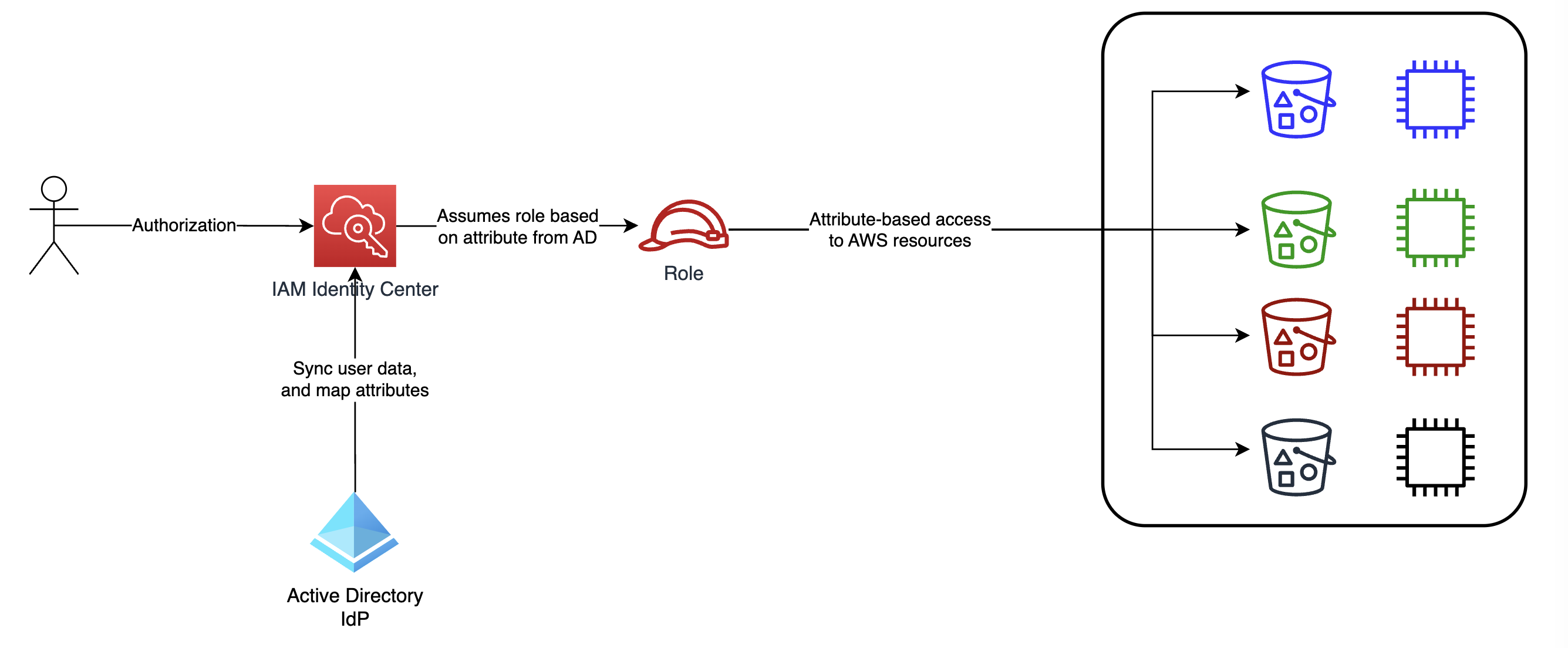

These three attributes will allow us to set up RBAC-ABAC autorization strategy as, after authentication, user assume role (RBAC) based on attributes from IdP (i.e. Active Directory). This way, the user gains access to resources with matching tags (ABAC). The following diagram provides a simplified overview of the implementation.

EKS

RBAC is the default authorization strategy for K8s. As EKS is a service managed by AWS with no access to control plane nodes. Therefore, we can not change cluster authorization mode to ABAC. Instead, we can authenticate to Kubernetes trough AWS IAM roles using aws-iam-authenticator which maps IAM Role ARNs to Roles inside K8s.

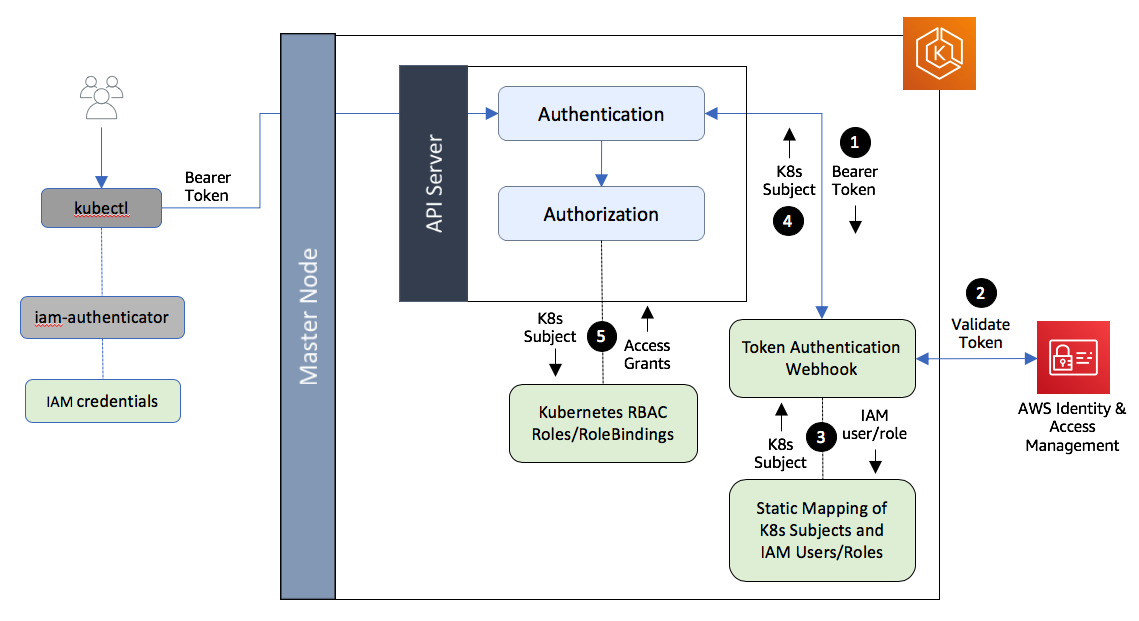

Authentication and Authorization of a client in an Amazon EKS cluster

In Kuberentes, RBAC API declares four top-level types:

• Role - defined, within a namespace, contains rules that represent a set of permissions. These permissions are additive (no deny rules);

• ClusterRole - same as Role, but cluster-wide;

• RoleBinding - grants (within a namespace) the permissions defined in a Role to a user or group of users. It holds a list of subjects (users/groups/service accounts), and a reference to the role being granted;

• ClusterRoleBinding - same as RoleBinding, but cluster-wide.

Users can interact with these resources as they would with any other API resource - via kubectl, API calls, etc.

AWS Resources

In the following example, let’s assume we must grant access to project-related secrets, inside AWS Secrets Manager, for a DevOps from CINDYv3 team. Attributes have already been mapped from Active Directory using IAM Identity Center permission sets:

• ExtAttribute12:DevOps

• DepartmentNumber:CINDYv3

• FullOrgName:CINDY

1. We have to add policy that allows a user to assume any role in the account with the example- name prefix. The role must also be tagged with the same ExtAttribute12, DepartmentNumber, and FullOrgName tags as the user:

   { "Version": "2012-10-17", "Statement": [ { "Sid": "ExampleAssumeRole", "Effect": "Allow", "Action": "sts:AssumeRole", "Resource": "arn:aws:iam::123456789012:role/example-*", "Condition": { "StringEquals": { "iam:ResourceTag/ExtAttribute12": "${aws:PrincipalTag/ExtAttribute12}", "iam:ResourceTag/DepartmentNumber": "${aws:PrincipalTag/DepartmentNumber}", "iam:ResourceTag/FullOrgName": "${aws:PrincipalTag/FullOrgName}" } } } ] }

2. Create a policy named example-access-role. Add the following policy that allows principals to create, read, edit, and delete resources, but only when those resources are tagged with the same key-value pairs as the principal. When a principal creates a resource, they must add ExtAttribute12, DepartmentNumber, and FullOrgName tags with values that match the principal's tags.

   { "Version": "2012-10-17", "Statement": [ { "Sid": "AllActionsSecretsManagerSameProjectSameTeam", "Effect": "Allow", "Action": "secretsmanager:*", "Resource": "*", "Condition": { "StringEquals": { "iam:ResourceTag/ExtAttribute12": "${aws:PrincipalTag/ExtAttribute12}", "iam:ResourceTag/DepartmentNumber": "${aws:PrincipalTag/DepartmentNumber}", "iam:ResourceTag/FullOrgName": "${aws:PrincipalTag/FullOrgName}" }, "ForAllValues:StringEquals": { "aws:TagKeys": [ "ExtAttribute12", "DepartmentNumber", "FullOrgName" ] }, "StringEqualsIfExists": { "aws:RequestTag/ExtAttribute12": "${aws:PrincipalTag/ExtAttribute12}", "aws:RequestTag/DepartmentNumber": "${aws:PrincipalTag/DepartmentNumber}", "aws:RequestTag/FullOrgName": "${aws:PrincipalTag/FullOrgName}" } } }, { "Sid": "AllResourcesSecretsManagerNoTags", "Effect": "Allow", "Action": [ "secretsmanager:GetRandomPassword", "secretsmanager:ListSecrets" ], "Resource": "*" }, { "Sid": "ReadSecretsManagerSameDepartament", "Effect": "Allow", "Action": [ "secretsmanager:Describe*", "secretsmanager:Get*", "secretsmanager:List*" ], "Resource": "*", "Condition": { "StringEquals": { "aws:ResourceTag/DepartmentNumber": "${aws:PrincipalTag/DepartmentNumber}" } } }, { "Sid": "DenyUntagSecretsManagerReservedTags", "Effect": "Deny", "Action": "secretsmanager:UntagResource", "Resource": "*", "Condition": { "ForAnyValue:StringLike": { "aws:TagKeys": "example-*" } } }, { "Sid": "DenyPermissionsManagement", "Effect": "Deny", "Action": "secretsmanager:*Policy", "Resource": "*" } ] }

   1. The AllActionsSecretsManagerSameProjectSameTeam statement allows all of this service's actions on all related resources, but only if the resource tags match the principal tags. By adding"Action": "secretsmanager:*" to the policy, you make it more future-proof. If Secrets Manager adds a new API operation, you are not required to add that action to the statement. The statement implements ABAC using three condition blocks. The request is allowed only if all three blocks return true.

      1. The first condition block of this statement is truth if the specified tag keys are present on the resource, and their values match the principal's tags. This block returns false for mismatched tags, or for actions that don't support resource tagging. A list of actions that are not allowed by this block can be seen here. The following page shows that actions performed on the Secret resource type support the secretsmanager:ResourceTag/tag-key condition key. Some Secrets Manager actions don't support that resource type, including GetRandomPassword and ListSecrets. You must create additional statements to allow those actions.

      2. The second condition block returns true if every tag key passed in the request is included in the specified list. This is done using ForAllValues:StringEquals condition operator. If no keys or a subset of the set of keys is passed, then the condition returns true. This allows secretsmanager:Get* operations that do not allow passing tags in the request. If the requester includes a tag key that is not in the list, the condition returns false. Every tag key that is passed in the request must match a member of this list. For more information, see Using multiple keys and values.

      3. The third condition block returns true if the request supports passing tags, if all three of the tags are present, and if they match the principal tag values. This block also returns true if the request does not support passing tags. This is thanks to ...IfExists in the condition operator. The block returns false if there is no tag passed during an action that supports it, or if the tag keys and values don't match.

   2. The AllResourcesSecretsManagerNoTags statement allows the GetRandomPassword and ListSecrets actions that are not allowed by the first statement.

   3. The ReadSecretsManagerSameTeam statement allows read-only operations if the principal is tagged with the same access-team tag as the resource. This is allowed regardless of the project or cost-center tag.

   4. The DenyUntagSecretsManagerReservedTags statement denies requests to remove tags with keys that begin with example - from Secrets Manager. These tags are used to control access to resources, therefore removing tags might remove permissions.

   5. The DenyPermissionsManagement statement denies access to create, edit, or delete Secrets Manager resource-based policies. These policies could be used to change the permissions of the secret.

3. Attach policy from the previous step to a role associated with CINDYv3 DevOps. Make sure that role is tagged appropriately. Example tag values:

   Job	ExtAttribute12 tag value	DepartmentNumber tag value	FullOrgName tag value
   CINDYv3 DevOps	DevOps	CINDYv3	CINDY
   CINDYv2 Developer	Developer	CINDYv2	CINDY
   Accountant from Finance Dept.	Accountant	COST	Finance
   DevOps from IT Department	DevOps	IT	IT_Dept

4. Remember to tag properly all ASM secrets that should be accessible for DevOps from CINDYv3.

   • ExtAttribute12:DevOps

   • DepartmentNumber:CINDYv3

   • FullOrgName:CINDY

5. You are done. Every DevOps from CINDYv3 should have access to these secrets.

ABAC-RBAC in EKS

In the following example, I would like to demonstrate how to set up an IAM role for authentication and map it to a K8s role, which will allow API calls from IAM User. It will also cover how to allow a specific IAM user/role to manage a single namespace only, preventing them from interacting with other namespaces.

By default, whoever creates an EKS cluster, IAM User or IAM Role, will have full admin access to it. In order to add additional Users/Roles, w need to define a ConfigMap which is used for management of Users or IAM Roles for the Cluster.

Let’s have a look at base configuration for aws-auth ConfigMap, which allows worker Nodes with InstanceRole arn:aws:iam::111111111:role/worker-node-instance-role to join the EKS control plane:

To add another role.
